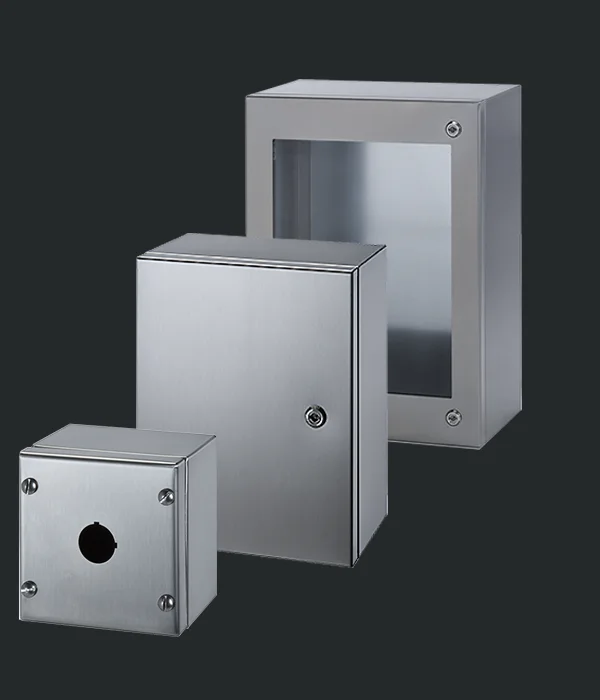

Stainless steel electrical boxes, junction boxes, push button boxes

Download Catalog

Stainless Steel Electrical Boxes

BOXES

MPGAMMA boxes find their use in various sectors, offering maximum IP66, IP67, IP69, IK10 protection to the installed components. The range includes push-button panels with screwed lid and anti-loss screws and junction boxes with hinged door and anti-loss screws on the opposite side, and 3 mm double bar stainless steel locks and transparent door (optional). The CHD line with integrated sloping roof and hygienic locks completes the range. All enclosures can be equipped with wiring plates, accessories for wall fixing, rain roof, door stop, ventilation systems and cable passage.

WATERTIGHT HYGIENIC BOXES

MPGAMMA has designed and manufactured the box line at increased hygiene completely made of stainless steel AISI 304L and fully sealed.

The hygienic box of the CHD series has been specifically designed to meet the high hygiene standards required in the pharmaceutical and food & beverage manufacturing sectors. Its design, in accordance with EHEDG requirements, allows for maximum cleanliness, ensuring the highest levels of hygiene and degrees of protection IP66-IP69K IK10.

JUNCTION BOXES AND PUSH-BUTTON PANELS

MPGAMMA junction boxes and push-button panels have been designed to meet the demands in terms of practicality, ease of installation and ease of cleaning, respecting the highest hygienic standards.

Each individual item can be made and drilled on a specific design, supplied by the customer, customized in every single detail and completed thanks to a wide range of accessories.

Products

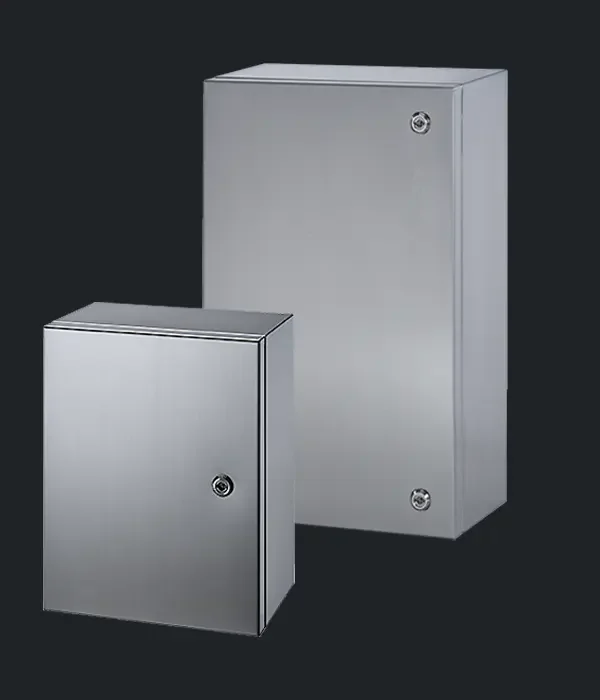

CPN SERIES – Watertight Solid Door Electrical Boxes

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external SATIN finish, medium Scotch-Brite type.
  • Galvanized sheet metal wiring plate with 20/10 thickness.
  • Door opening up to 120° with inner hinges and locks with double wing insert stainless steel.
  • Polyurethane seal with robotized application.
  • Rear prearrangement for wall fixing with M6 blind threaded holes.

PLUS ON DEMAND FOR CUSTOMIZED

  • Material: AISI 316L (Wnr 1.4404)
  • Drilling: as per drawings on body and door.
  • Dimensions: specials
  • Seals: silicone
Download CPN Series Data Sheet

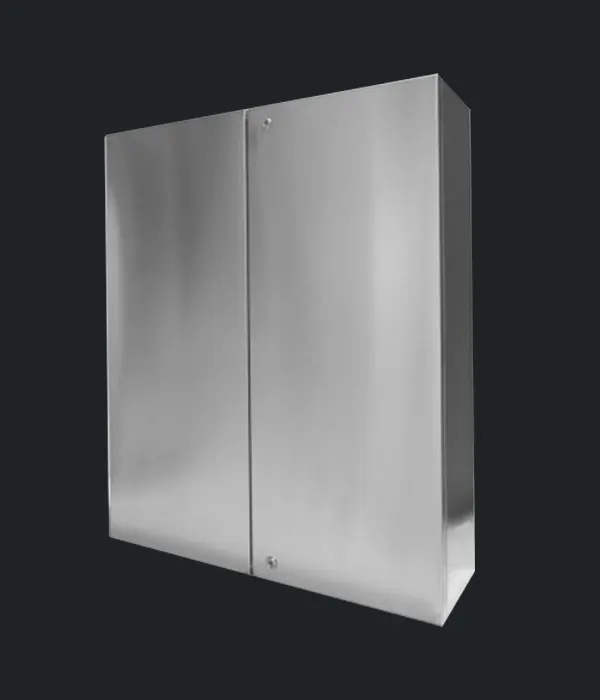

CPN SERIES – Watertight Solid Door Electrical Boxes (2 Doors)

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • FINE external SATIN finish, medium Scotch-Brite type.
  • Galvanized sheet metal wiring plate with 20/10 thickness.
  • N. 02 swing doors opening a minimum of 120° with stainless steel inner hinges and locks with stainless steel double wing insert.
  • Polyurethane seal with robotised application.
  • Body with welded and finished corners.
  • Stainless steel screws.
  • Internal M6x16 stainless steel earthing threaded studs on the door and body of the box.
  • Internal M6 threaded spacers on the body for wiring plate fixing.
  • Sheet metal thickness values of the body and door from 12/10 mm to 20/10 mm depending on the size.
  • Rear prearrangement for wall fixing with M6 blind threaded holes.

PLUS ON DEMAND FOR CUSTOMIZED

  • Drilling as per design on body and door.
  • Resistant silicone seals, from –50°C to +180°C.
  • Products made with AISI 316L or other special steels.
  • Special dimensions.
  • Generic and specific accessories.
Download CPN Series 2 Doors Data Sheet

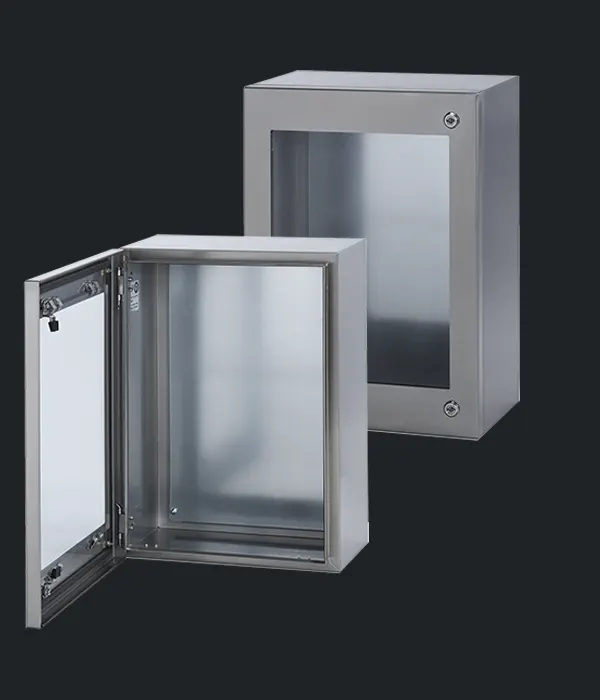

CLN SERIES – Watertight Transparent Door Box

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external satin finish, medium Scotch-Brite type.
  • Door opening a minimum of 120° with transparent panel in shockproof Lexan.
  • External door with inner hinges and locks with double wing insert in stainless steel.
  • Galvanized sheet metal wiring plate with 20/10 thickness.
  • Polyurethane seal with robotised application.
  • Rear prearrangement for wall fixing with M6 blind threaded holes.
  • Prearrangement for inner door mounting kit.
  • Prearrangement for modular switches mounting kit (ordered separately).

PLUS ON DEMAND FOR CUSTOMIZED

  • Material: AISI 316L (Wnr 1.4404)
  • Panel door: possibility of laminated glass window.
  • Drilling: as per drawings.
  • Dimensions: specials.
  • Seals: silicone.
Download CLN Series Data Sheet

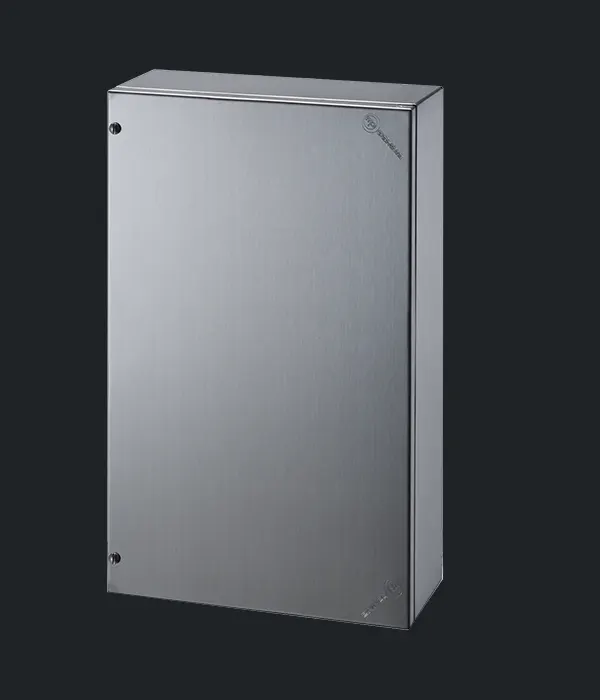

CDN SERIES – Watertight Stainless Steel Solid Door Box

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external SATIN finish, medium Scotch-Brite type.
  • Door opening a minimum of 120° with stainless steel inner hinges, locks with stainless steel double wing insert, welded and finished corners.
  • Closure with anti-loss slotted screws.
  • Polyurethane seal with robotised application.
  • Rear prearrangement for wall fixing.
  • Wiring plate ordered separately.

PLUS ON DEMAND FOR CUSTOMIZED

  • Drilling as per design on body and door.
  • Resistant silicone seals, from –50°C to +180°C.
  • Products made with AISI 316L or other special steels.
  • Special dimensions.
  • Generic and specific accessories.
Download CDN Series Data Sheet

CHD SERIES – Sloped Roof Box for Increased Hygiene

  • Made of AISI 304L stainless steel (Wnr 1.4307).
  • Roof integrated into the box body and inclined towards the front at 30°.
  • Surface finish with very low roughness RA < 0.3 microns.
  • Without inserts or holes.
  • 120° internal hinges on left side (reversible on request).
  • Door with sloped edges and internal hinges with opening at 120° on the left-hand side (reversible on demand).
  • Robot-laid polyurethane sealing ring.
  • Hygienic locks (1 or 2, according to the size).
  • Mounting plate in zinc-coated metal sheet.
  • Micro-fused hinges.
  • Door with sloped edges and completely internal hinges with opening at 120° on the left-hand side (reversible).
  • Silicone seal with robotised application.
  • After a certain dimension size, it has a tubular reinforcement coupled with a support guide wheel.
  • 30° inclined leading edges as per the CPN box series. This guarantees a homogeneous gasket compression.

PLUS ON DEMAND FOR CUSTOMIZATION

  • Material: AISI 316L (Wnr 1.4404)
  • Dimensions: special.
Download CHD Series Data Sheet

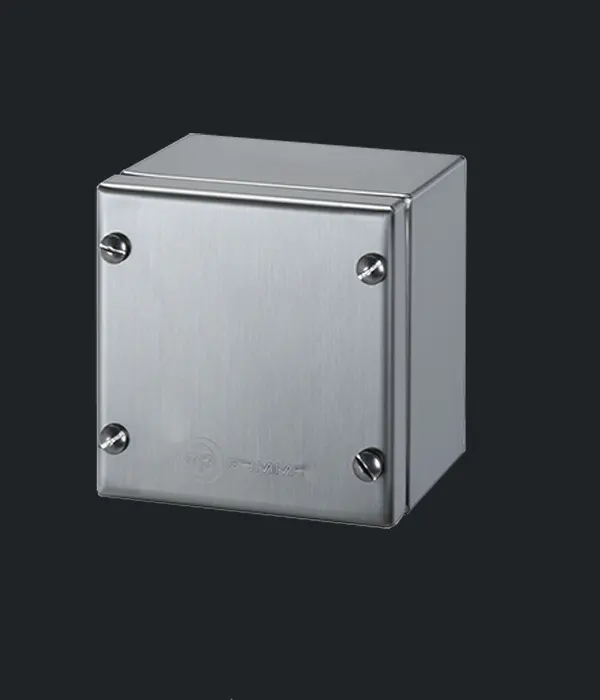

SDN SERIES – Watertight Stainless Steel Junction Boxes

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external satin finish, medium Scotch-Brite type.
  • Cover screwed to the box body with leak-proof clamping screws.
  • Sheet metal thickness of body and cover from 10/10 mm to 12/10 mm depending on the size.
  • Polyurethane seal with robotised application.
  • Rear prearrangement for wall fixing with M5 blind threaded holes.

Plus on demand for customization

  • Material: AISI 316L (Wnr 1.4404).
  • Drilling: as per drawings on body and cover.
  • Dimensions: special.
  • Seals: silicone.
Download SDN Series Data Sheet

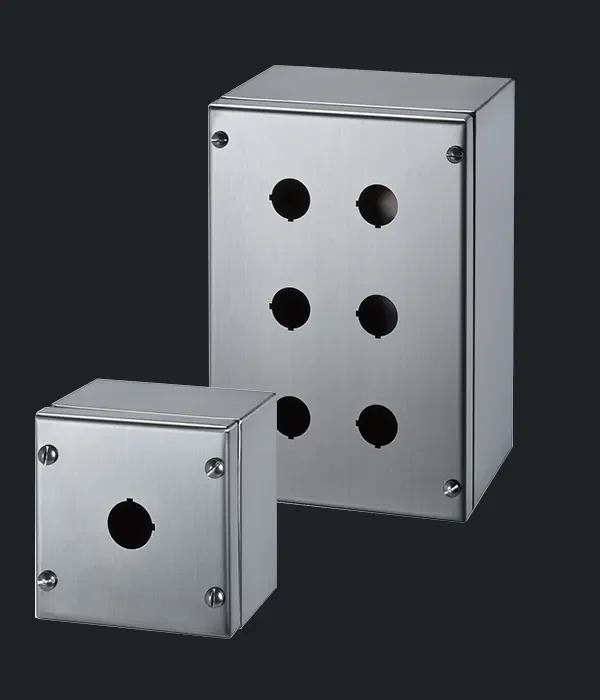

SPN SERIES – Push Button Electrical Boxes

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external SATIN finish, medium Scotch-Brite type.
  • Cover with welded and finished corners with leak-proof clamping screws.
  • Ø 22,5 mm drillings on the cover.
  • Sheet metal thickness values of the body and cover from 10/10 mm to 12/10 mm depending on the size.
  • Polyurethane seal with robotised application.
  • Rear prearrangement for wall fixing with M5 blind threaded holes.

PLUS ON DEMAND FOR CUSTOMIZATION:

  • Material: AISI 316L (Wnr 1.4404).
  • Drilling: as per drawings on body and cover.
  • Dimensions: specials.
  • Seals: silicone.
Download SPN Series Data Sheet
