Pendant control panel, Joints and support systems, console

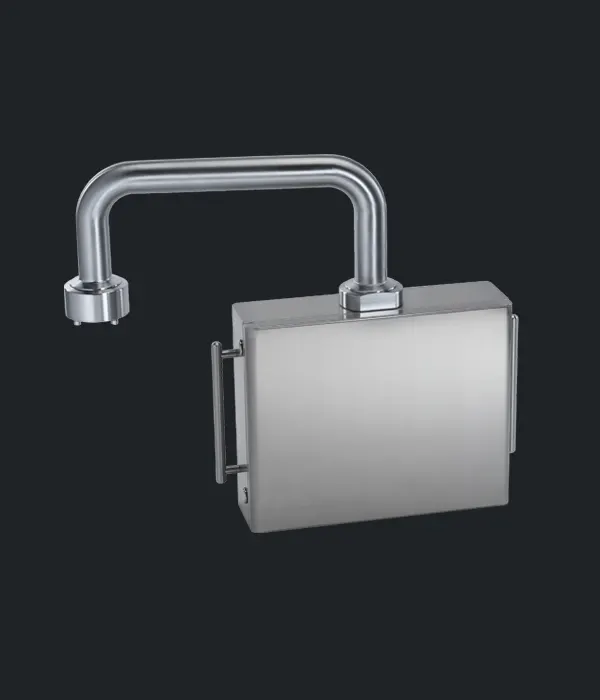

• Entirely made of AISI 304L stainless steel (Wnr 1.4307).
• Fine external SATIN finish, medium ScotchBrite type.
• To be used in combination with the “J” series system of load-bearing arms, with a diameter measuring 48 mm and 60 mm, with the relative rotating joints, GM series, and fixed joints, GF series.
• The door is reversible and it can be opened to at least 120° with internal stainless steel hinges, side locks with stainless steel insert featuring a double flap.
• Can be assembled with the arm support on the lower or upper side.
• Polyurethane seal with robotised application.
• Ergonomic handle.
• Sheet metal thickness values of the body and door from 12/10 mm to 15/10 mm depending on the size.
• Models KC403015, KC453515, and KCS403010 and KCS453510 are designed for 48 mm diameter support arms.
• Models KC504015, KC505015, KC604015, KC605010, and KCS504010, KCS505010, KCS604010, and KCS605010 are designed for 60 mm diameter support arms.

PLUS ON DEMAND FOR CUSTOMIZATION:

• Material: AISI 316L (Wnr 1.4404)
• Drilling: as per drawing
• Dimensions: specials
• Seals: silicone

• Entirely made of AISI 304L stainless steel (Wnr 1.4307).
• Fine external SATIN finish, medium ScotchBrite type.
• To be used in combination with the “J” series system of load-bearing arms with the relative rotating joints, GM series, and fixed joints, GF series.
• Designed for support with arms featuring a 48 mm and 60 mm diameter.
• Can be assembled with the arm support on the lower or upper side.
• The door can be opened to at least 120° with internal stainless steel hinges, side locks with stainless steel insert featuring a double flap.
• Polyurethane seal with robotised application.
• Ergonomic handle.
• Sheet metal thickness values of the body and door from 12/10 mm to 15/10 mm depending on the size.

PLUS ON DEMAND FOR CUSTOMIZATION:

• Material: AISI 316L (Wnr 1.4404)
• Drilling: as per drawing
• Dimensions: specials
• Seals: silicone

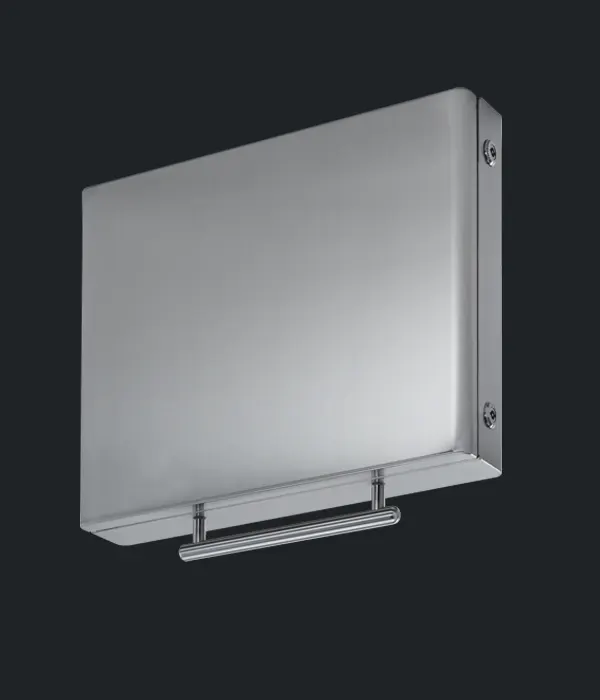

• Entirely made of AISI 304L stainless steel (Wnr 1.4307).
• External satin finish without interstices.

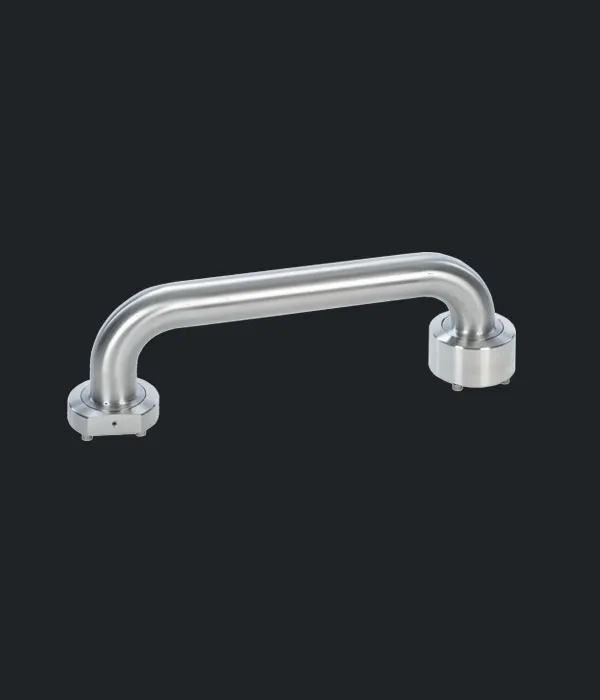

• To be used in combination with the “Y” series support arm system with relative rotating and fixed joints.
• Supporting arms system with a diameter measuring 48 mm and 60 mm, fitted with fixed or rotating joints.

PLUS ON DEMAND FOR CUSTOMIZATION:

• Length and geometric shape of the arms according to customer specifications.

• The O-Ring seal of the couplings has an overlap, which improves the IP rating and isolates the bearing from the external environment.
• The tube fastening system is independent for improved stability.
• All fastenings are dynamometrically tested prior to sale but, can be modified by the user during installation.
• There is only one screw for clamping at 330°; to obtain a 180° clamping, simply add the second screw. As already included in the kit.

GF – FIXED JOINT
Specific stainless steel accessory that does not allow the rotation of the supporting arm.

GM- ROTATING JOINT MACHINE SIDE
Specific stainless steel accessory for the pipe on the machine side, which ensures the rotation of the supporting arm and it supports its weight.

GS – ROTATING JOINT PENDANT CONTROL PANEL SIDE
Specific stainless steel accessory for the pipe on the Pendant control panel side, which ensures the rotation of the supporting arm.

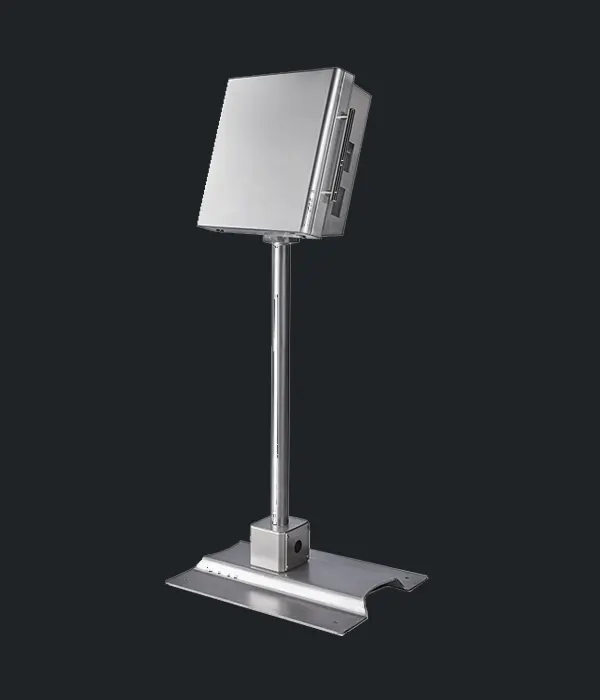

<ul>
<li>Made of AISI 304L stainless steel (Wnr 1.4307).</li>
<li>Fine external SATIN finish, medium Scotch-Brite type.</li>
<li>Console container available in 2 different sizes.</li>
<li>Swivel joint with 330° lock under the enclosure of the console.</li>
<li>N.02 ergonomic stainless steel side handles.</li>
<li>N.02 side stainless steel handles with 1/4 of a turn and double flap insert.</li>
<li>Galvanised wiring plate.</li>
<li>Tilted console for improved ergonomics, with openable and reversible front door.</li>
<li>Sturdy supporting rod, 60 mm diameter.</li>
<li>Base with removable cable infeed flange.</li>
</ul>

<p><strong>PLUS ON DEMAND FOR CUSTOMIZATION:</strong></p>

<ul>
<li>Material: AISI 316L (Wnr 1.4404)</li>
<li>Drilling: as per drawing</li>
<li>Dimensions: specials</li>
<li>Seals: silicone</li>
</ul>
